一．Basic Product Information

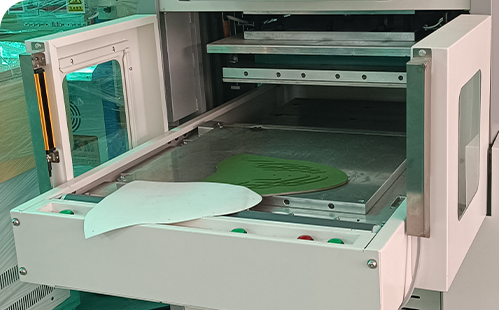

Q1: What is the HF-886 Precision Slide Fusing Machine?

A1: The HF-886 Precision Slide Fusing Machine is a high-precision slide fusing machine suitable for heat cutting and welding of footwear, leather goods, trademarks, garment embossing, PET materials, FLY hot melt adhesive films and TPU. The machine adopts a high-precision slide to achieve stable operation and accurate positioning, and cutting and edge fusing are synchronously completed in a single press stroke, ensuring consistent product quality. Equipped with PLC intelligent control and touchscreen operation, parameters such as temperature, pressure and time can be stored and retrieved. Combined with precise PID temperature control, it ensures stable product quality. The cut surface is smooth and burr-free, with firm and reliable fusing, providing waterproof and fray-resistant performance, making it suitable for sealing welding applications. The machine is equipped with safety light curtains that trigger an immediate stop upon intrusion. Premium pneumatic components and a reinforced structure allow for long-term continuous operation. Molds can be changed quickly to accommodate products of different shapes and sizes, achieving multi-functional use with a single machine.

Q2:  What is the HF-886 used for?

A2:It is mainly used for heat cutting and welding. Specific applications include:

1. Heat cutting and welding of footwear.

2. Heat cutting and welding of leather goods.

3. Heat cutting and welding of trademarks.

4. Heat cutting and welding of garment embossing.

5. Heat cutting and welding of PET materials.

6. Heat cutting and welding of FLY hot melt adhesive films.

7. Heat cutting and welding of TPU.

Q3: What are the key technical parameters of the HF-886?

A3: Key technical parameters of the HF-886 are as follows:

1. Model: HF-886

2. Max Power: 15kw, 25kw

3. Voltage: 380V 50hz 3P

4. Working Pressure: 25/48T

5. Upper Mold Working Area: 400×600mm

6. Lower Mold Working Area: 400×600mm

7. Weight: 1.2T, 1.3T

8. Machine Size: 1850×1300×2350mm

The max power affects fusing capability, voltage affects the usable region, working pressure affects fusing firmness, upper and lower mold working areas determine the processable material area, and machine weight and size affect installation space and handling.

Q4:What are the main features of the HF-886?

A4: Main features include:

1. Integrated Cutting & Welding, Precision & High Efficiency: The high-precision slide enables stable operation and accurate positioning. Cutting and edge fusing are synchronously completed in a single press stroke, ensuring consistent product quality.

2. PLC Intelligent Control: Touchscreen operation is supported, with parameters such as temperature, pressure and time storable and retrievable. Combined with precise PID temperature control, it ensures stable product quality.

3. Smooth Cut Edge & Automatic Edge Sealing: The cut surface is smooth and burr-free, with firm and reliable fusing. It provides waterproof and fray-resistant performance, making it suitable for sealing welding applications.

4. Safe & Durable: Equipped with safety light curtains that trigger an immediate stop upon intrusion. Premium pneumatic components and a reinforced structure allow for long-term continuous operation.

5. Flexible & Multi-purpose: Molds can be changed quickly to accommodate products of different shapes and sizes, achieving multi-functional use with a single machine.

二. Applicable Industries & Materials

Q5: What materials can the HF-886 process?

A5:The HF-886 is suitable for the following materials:

1. Footwear

2. Leather goods

3. Trademarks

4. Garment embossing

5. PET materials

6. FLY hot melt adhesive films

7. TPU

Q6: What industries or factories use the HF-886?

A6:It is widely used in the following industries:

1. Shoe factories

2. Leather goods factories

3. Trademark factories

4. Garment factories

5. PET material processing factories

6. TPU processing factories

三. Functions & Performance

Q7:What are the advantages of integrated cutting and welding on the HF-886?

A7:The advantages of integrated cutting and welding include:

1. The high-precision slide enables stable operation and accurate positioning.

2. Cutting and edge fusing are synchronously completed in a single press stroke.

3. Ensuring consistent product quality.

4. Precision & High Efficiency.

5. Saves processes

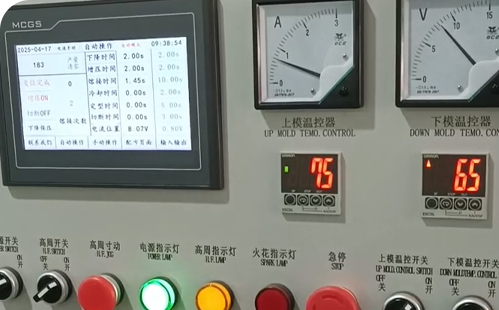

Q8:What are the features of the PLC intelligent control on the HF-886?

A8:The features of PLC intelligent control include:

1. Touchscreen operation.

2. Parameters such as temperature, pressure and time storable and retrievable.

3. Combined with precise PID temperature control.

4. Ensures stable product quality.

5. Easy to operate.

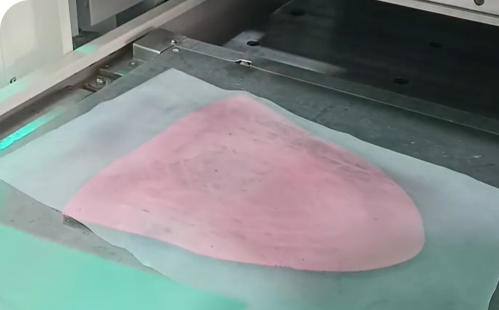

Q9: How are the cut edge and sealing effect of the HF-886?

A9:The features of the cut edge and sealing effect include:

1. The cut surface is smooth and burr-free.

2. Firm and reliable fusing.

3. Provides waterproof and fray-resistant performance.

4. Suitable for sealing welding applications.

5. Automatic edge sealing.

Q10: How are the safety and durability of the HF-886?

A10:The features of safety and durability include:

1. Equipped with safety light curtains.

2. Triggers an immediate stop upon intrusion.

3. Premium pneumatic components and a reinforced structure.

4. Allows for long-term continuous operation.

5. Safe & Durable.

Q11:How is the flexible and multi-purpose design of the HF-886 reflected?

A11:Flexible and multi-purpose design is reflected in:

1. Molds can be changed quickly.

2. Accommodates products of different shapes and sizes.

3. Achieving multi-functional use with a single machine.

4. Improves equipment utilization.

四.Selection & Purchasing

Q12:  How to choose the HF-886 Precision Slide Fusing Machine?

A12:Choose based on the following factors:

1. Actual production needs: Confirm whether precision slide fusing functions are needed.

2. Processing materials: Confirm whether it is footwear, leather goods, trademarks, garment embossing, PET materials, FLY hot melt adhesive films, TPU, etc.

3. Max Power: Confirm whether 15kw or 25kw meets fusing capability requirements.

4. Working Pressure: Confirm whether 25/48T meets fusing firmness requirements.

5. Upper and Lower Mold Working Areas: Confirm whether 400×600mm meets processable material area requirements.

6. Power conditions: Confirm whether the factory has 380V 50hz 3P power.

7. Installation space: Confirm whether the machine size 1850×1300×2350mm fits the installation space.

8. Machine weight: Confirm whether 1.2T or 1.3T requires consideration for handling and load-bearing.

9. After-sales support: Confirm whether the manufacturer provides installation guidance, operation training and after-sales service.

Q13:What should I consider when buying the HF-886?

A13:Buyers should consider the following factors:

1. Max Power: Whether 15kw or 25kw meets production needs.

2. Voltage: Whether 380V 50hz 3P meets local power conditions.

3. Working Pressure: Whether 25/48T meets fusing firmness requirements.

4. Upper and Lower Mold Working Areas: Whether 400×600mm meets processable material area requirements.

5. Machine weight: Whether 1.2T or 1.3T requires consideration for handling and load-bearing.

6. Machine Size: Whether 1850×1300×2350mm fits the installation space.

7. Mold: Confirm whether customized molds are needed.

8. Spare parts availability: Confirm supply of heating tube, pneumatic components, safety light curtains and other consumables.

9. After-sales support: Confirm installation guidance, operation training and after-sales service.

10. Delivery time and warranty period: Confirm delivery time and warranty policy.

Q14: Can the HF-886 be customized?

A14:Customization can be confirmed with the manufacturer according to actual requirements. Possible customization directions include:

1. Working voltage

2. Power interface

3. Max power

4. Working pressure

5. Upper and lower mold working areas

6. Mold

7. Appearance color

Before customization, clarify production needs, material types, welding area, welding thickness requirements, power conditions and installation space so the manufacturer can provide a suitable solution.

五.After-sales & Technical Support

Q15: Does the manufacturer provide installation and technical support?

A15:The manufacturer can provide the following services:

1. Installation guidance

2. Commissioning support

3. Operation training

4. After-sales service

5. Spare parts supply

6. Mold customization

Specific service scope depends on order and region. Please confirm with the supplier before purchase. It is recommended to clarify installation, training, warranty and spare parts supply in the purchase contract.
