ASFROM GROUP:Right Solution Partner for Full Indutry of Footwear Manufacturing

Footwear Manufacturing Footwear Machine (shoes machine）

The never-ending showroom online for footwear machine

what we do…

OUR SERVICE AREAS

Shoes making solutions

Designing and installing the most efficient shoe production line according to the size of the customer’s workshop and the desired capacity.

EVA Foaming Solutions

Set up a complete production line for EVA/PE (first-stage and second-stage) foaming as well as supercritical foaming, along with provision of technical support.

Flip Flops Solutions

Provide the complete solution for manufacturing flipflops, covering the entire process from the cutting section to the printing section.

Custom Molds

Customized making of EVA foam molds, rubber sheet molds, PVC/ Rubber strap molds etc.

Chemical Solutions

All chemical materials required for the processing of EVA foaming, Rubber sheets and outsole, PVC injection.

INK Solutions

Produce water-based inks, solvent-based inks and silicone inks, and provide customized integrated printing solutions for the footwear and garment industries.

PRINTING INK SOLUTION

Unlocking Colorful
Possibilities for Your Creativity

TRUSTED BEST COMPANY…

China’s most competitive footwear production plant equipment solution provider

ASFROM’s team has more than 20 years of experience in designing and installing complete plant equipment for shoe factories. We can customize your shoe production line according to your existing plant area and your idea capacity, and our shoe-making machines are easy to operate, efficient to use, and time-saving for repair and maintenance.

DO YOU NEED HELP?

Footwear Manufacturing Footwear Machine (shoes machine）

Factory area

Number of personnel

Cooperative enterprises

Field teaching

hot-selling property

Gravity Type Toe Lasting Machine

1. Suitable for mass production of sports shoes, skates, and labor protection shoes to shape the toe upper.

2. Adopting ergonomic design, the parameters are adjusted accurately and easily, and novices can quickly get started.

3. The innovative structure makes the machine adjustment as fast as 2 minutes and 45 seconds, and the modular components are easy to replace, reducing costs and improving efficiency.

4. The well-known brand hydraulic cylinder provides 30-50KG/CM² stable hydraulic pressure to reduce failures and defective products.

5. 9 wear-resistant alloy claws are independently driven, multi-axis linkage is precisely clamped, and the rear claws automatically adjust the angle to solve the waist fitting problem.

6. The sweeper applies pressure evenly to prevent degumming, and an auxiliary sweeper is optional.

7. Optional automatic gluing device, precise glue control, realize automated production, reduce costs, and increase efficiency.

AB-867

hot-selling property

Back Top Shoe Heel Lasting Machine

1. Suitable for shaping the heels of general midsoles and soft midsoles with a last height of less than 180mm.
2. Equipped with a fine-tuning lasting height device, it is easy to adjust and accurately positioned.

3. The sweeper and tightener are of complete specifications and suitable for all types of shoes; the tightener adopts a chain-type covering, which has an excellent tightening effect.
4. The gear, rack and ratchet design assists the height adjustment of the support platform to be fast and accurate.

5. The second rise and press of the last support platform cooperates with the sweeper heating device to improve the flatness of the lasting, avoid corners, and improve product quality.

AB-661

hot-selling property

Walled Sole Press Machine

1.Patented steel ball sole mechanism: relying on the fluidity of steel balls, the pressing pressure is evenly distributed to improve the fit.
2.Rotating pressure rod mechanism: convenient operation, quick access to shoes, and improved production efficiency.
3.Bead-type balanced pressure: ensure uniform force on the outsole, enhance bonding firmness, and facilitate the removal of finished products.

4.Two-stage pressurization mode: molding pressurization and post-molding pressurization can be selected as needed to adapt to different material properties and stabilize quality.
5.Hydraulic positioning technology: precise positioning simplifies operation and ensures that the sole and upper are firmly bonded.
6.Flexible adaptation: quickly switch shoe sizes and reduce production preparation time.

7.Space optimization: compact equipment improves site utilization.
8.Convenient operation: supports manual continuous operation and automatic operation after parameter setting, lowering the technical threshold.
9.Equipped with advanced safety electrical components, real-time monitoring of operating status, accurate feedback of problems, and all-round guarantee of production safety.

AB-918A

hot-selling property

Multi functional servo Driven Moldless Press Machine

1. Full servo motor drive system
(1) Precise pressure regulation: The pressure output is stable and can be flexibly adjusted according to the shoe shape requirements, up to 30kg/cm², and the advantages of complex sole pressing are significant.
(2) Energy saving and cost reduction: One machine completes the double pressing process, reducing equipment and labor input costs.
(3) Mold-free adaptation: No need to distinguish between shoe sizes and left and right feet, eliminating traditional wall pressing molds, saving mold costs and mold change time.

2. Double safety protection mechanism
(1) The intelligent sensing device monitors the mold area in real time and immediately shuts down when encountering obstacles.
(2) The fault warning system automatically alarms and locks the machine when sensing abnormalities, ensuring production safety in all aspects.

Ac-700sf

hot-selling property

UV curing Machine

4.Energy-saving and economical: UV lamps start instantly, energy consumption is concentrated and efficient, and it is more energy-saving than traditional hot drying tunnels.
5.The equipment has a compact structure and occupies a small area, saving site space, and reducing production costs in all aspects by improving efficiency, reducing losses and saving energy.

1.Efficient and fast: Irradiation treatment is completed within seconds, which greatly shortens the production cycle and improves the efficiency of the assembly line.
2.Low temperature protection: Cold light source curing mode, the temperature is extremely low, effectively avoiding the shrinkage, deformation, blistering and other problems of heat-sensitive foaming materials such as EVA and MD due to heat.

3.Stable transmission: Equipped with a reliable conveyor belt system and anti-deviation guide wheel/correction device to ensure that the shoe material passes through the irradiation area smoothly and ensures uniform and continuous treatment.

UV1-2440

hot-selling property

Toe Cap Molding Machine

3. Mold system: The hot mold can simultaneously heat the steam to soften the upper, making the upper more fitting, more elastic and shiny. The cold mold fixture uses a Teflon strap group with a last mold, which is made according to the customer's last, with an accuracy of 98%. The mold is fixed with a buckle, and the mold can be quickly replaced. It only takes five or six minutes for a skilled worker to disassemble and assemble a set of molds.

1. Hot mold steam system: The steam heating system is located in the middle of the machine, with a fast heating speed, reaching 120 degrees Celsius in 15 minutes, and the temperature fluctuation is only 2-5 degrees Celsius. It is suitable for different materials and has excellent results.

2.Uniform cooling effect: The closed direct cooling refrigeration system is adopted, with a fast cooling speed, reaching -15°C in five minutes, and a good shaping effect, ensuring that the toe cooling process is uniform and stable.

ACH-710E-2C2H

hot-selling property

Back Part Molding Machine

5.Three-axis red LED energy-saving positioning light: to achieve precise positioning of the heel and avoid deviation.
6.8-station design(4 colds + 4 hots): one person can control eight stations, and the production capacity is more efficient.
7. PLC touch screen: can set the temperature of the cold mold/hot mold, shaping time and various function switches of each station according to the shoe type.

1.Integrated airbag: To replace the mold, you only need to replace the cold inner mold, and the shaping effect is good.
2.Blue silicon hot mold: Made of environmentally friendly material, high temperature resistance of 150-250℃, long service life and low maintenance cost.

3.Claw adjustment system: can be flexibly adjusted according to the shoe last, so that the upper is more close to the last.
4.-15℃ ultra-fast cooling: equipped with imported energy-saving and environmentally friendly compressors and refrigerants, faster cooling and stable operation.

ACH-720B-4C4H

what we do…

OUR SERVICE AREAS

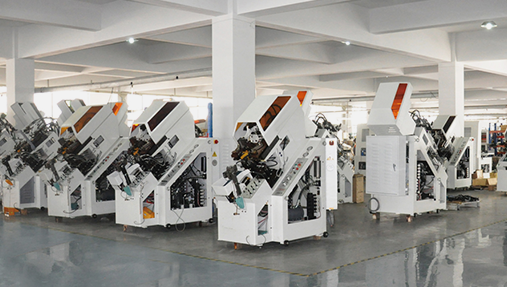

Shoe Machinery Factory

Designing and installing the most efficient shoe production line according to the size of the customer’s workshop and the desired capacity.

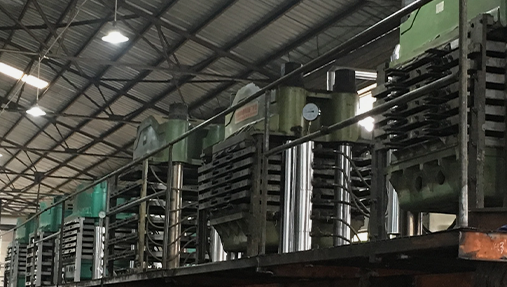

Eva Machinery Factory

Set up a complete production line for EVA/PE (first-stage and second-stage) foaming as well as supercritical foaming, along with provision of technical support.

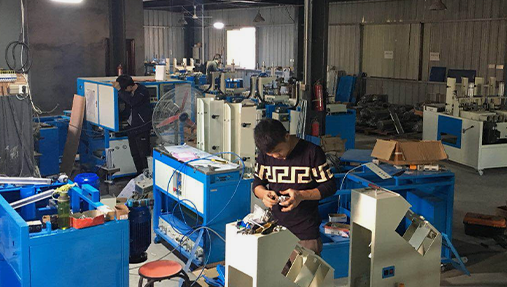

Flip-flop Machinery Factory

Provide the complete solution for manufacturing flipflops, covering the entire process from the cutting section to the printing section.

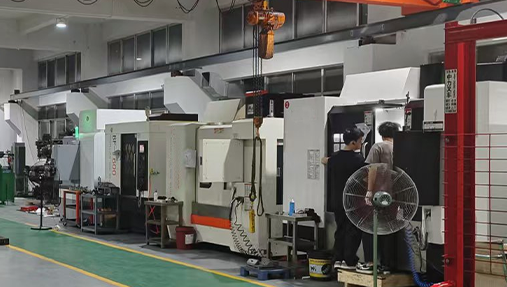

Mold Manufacturing Plant

Produce water-based inks, solvent-based inks and silicone inks, and provide customized integrated printing solutions for the footwear and garment industries.

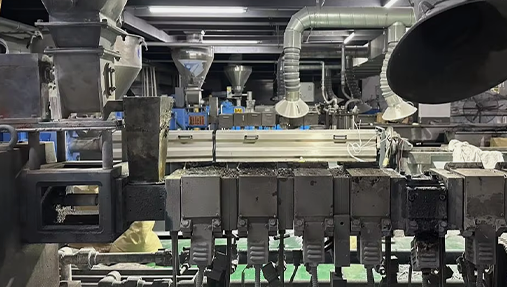

Rubber Chemical Plant

All chemical materials required for the processing of EVA foaming, Rubber sheets and outsole, PVC injection.

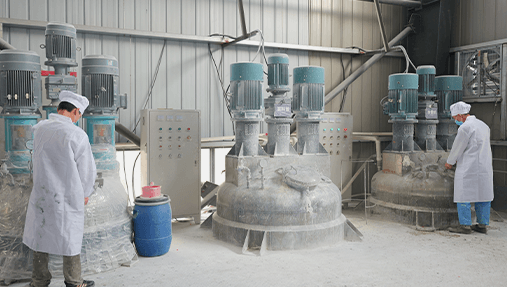

Ink Manufacturing Plant

Produce water-based inks, solvent-based inks and silicone inks, and provide customized integrated printing solutions for the footwear and garment industries.

Footwear Manufacturing Footwear Machine (shoes machine）

DO YOU NEED HELP?

What we do...

HAPPY CLIENT FEEDBACK

As a shoe machinery manufacturer, we assist customers by first ensuring clear communication and gathering detailed information about the issue. We offer troubleshooting advice and remote support for common problems. If needed, we arrange on-site service and send necessary spare parts. After resolving the issue, we follow up to ensure the machine is working properly and provide recommendations for maintenance and training.

What we do...

HAPPY CLIENT FEEDBACK

Contact Us

Feel free to contact us any time.We will get
back to you as soon as we can!

info@asfrom.com

Room 1602 Building 2, No.8 Yuanmei West Road, Nancheng Street, Dongguan City, Guangdong Province, China.

+86-18676987887
