Four Cold Four Hot Toe Cap Molding Machine Base Q&A
一．Application Matching FAQs
Q1: What kinds of shoes and production crafts can ASP-XT4C4H handle?
A1: This 4 hot + 4 cold station toe forming machine supports 3D stereoscopic shaping for men’s shoes, women’s shoes and children’s shoes of all styles. It is also perfectly applicable to hot melt glue welt shoes, moccasin Mark shoes and safety work shoes, meeting high-standard lasting craft requirements of various footwear factories.
Q2: Can this machine process leather, microfiber, canvas and composite shoe uppers at the same time?
A2: Yes. Each hot and cold station supports independent temperature & pressure parameter setting. Operators can set separate heating and cooling parameters for different upper materials without replacing any molds or accessories during style switching.
二. Multi-station Production Efficiency FAQs
Q3: What is the core production advantage of 4C4H four-station design compared with 2C2H dual-station models?
A3:Equipped with 4 independent heating zones matched with 4 independent cooling zones, multiple pairs of shoe toes can be processed simultaneously in one machine:
- Single machine hourly output is nearly doubled, greatly boosting daily production capacity for mass-production shoe factories;
- Each station runs independently without mutual interference, and temperature, pressure and time can be adjusted separately according to different shoe styles;
- Balanced energy utilization reduces unit power consumption per pair of shoes, cutting overall production cost.
Q4: How much time and labor cost can this machine save compared with traditional single-station toe forming equipment?
A4:It adopts integrated one-step hot-cold alternating forming process to cancel extra toe locking reinforcement procedures:
- The forming cycle of each pair of shoes is shortened by 30%, and no secondary manual hammer flattening is required;
- Labor cost can be reduced by 20%, one single operator can fully operate all four stations at the same time without auxiliary staff.
三. Shaping Quality & Defect Elimination FAQs
Q5: Can this machine solve common production defects such as wrinkled uppers and distorted toe caps from traditional lasting processes?
A5:Absolutely. The machine is equipped with intelligent integrated temperature & pressure dual control system, and adopts alternating hot pressing and cold setting craft:
- Alternating hot and cold pressure fully releases internal stress of shoe upper materials;
- 3D mold radian fits shoe lasts perfectly;
- Finished toe surface stays flat and wrinkle-free with neat outline, effectively improving finished product yield and appearance grade.

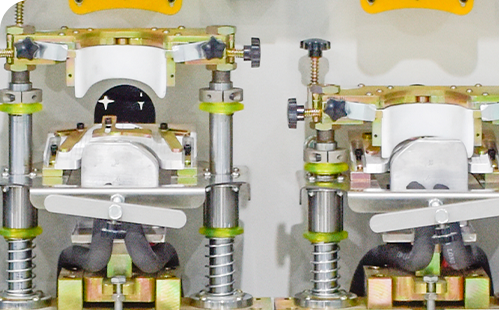

四.Adjustable Mold System FAQs
Q6: Does this machine need to replace the whole mold when switching different shoe sizes and toe shapes?
A6:No, it adopts full adjustable mold structure:
- Only simple parameter adjustment is needed to adapt to different toe sizes, round toes, pointed toes and square toes;
- No disassembly of the whole mold frame, greatly shortening model change preparation time;
- Molds can be fine-tuned according to customer exclusive custom toe standards, greatly improving equipment versatility and flexibility for multi-style production.
五.High-efficiency Refrigeration System FAQs
Q7: What refrigeration configuration does ASP-XT4C4H adopt, and what are its core strengths?
A7:It is equipped with original imported NGM compressor from Mexico, matched with full seamless copper circulating cooling pipeline:
- Fast cooling speed: mold surface can drop to the preset temperature range (-10℃ ~ 5℃ adjustable) within 10 minutes;
- Uniform cooling effect: coolant directly flows to all key contact areas of the mold without local cold shortage or overheating;
- Air-cooled independent design, no external tap water pipeline required, saving factory water transformation cost;
- Less pipeline scaling and blockage problems, simple daily cleaning and maintenance work.
六.Complete Technical Parameter FAQs
Q8: What are the full standard electrical and mechanical specifications of this machine?
A8:
- Model: ASP-XT4C4H Four Cold Four Hot Toe Cap Molding Machine
- Input Power Supply: Single Phase AC220V / 50Hz
- Maximum Total Power: 8kW
- Overall Machine Outer Dimension: 17208501720mm
- Machine Net Weight: 550KG
Q9: Can the power system be modified to 110V 60Hz, 415V and other international standards for overseas customers?
A9: Yes. Before production, we can replace compressors, motors and all internal electrical components to match local voltage and frequency requirements of different countries, without changing the machine’s forming performance.
七.Control & Operation FAQs
Q10: What control system is installed on the machine, and is it friendly for new operators?
A10: Adopts full PLC touch screen centralized control with Chinese & English bilingual switching function. All heating temperature, cooling time, pressing pressure and cylinder stroke of four stations can be digitally set separately on the screen. The operation flow is simplified, and new workers can master full operation procedures within half an hour after simple training.
Q11: Does each station have independent safety emergency stop protection?
A11: Yes. Every single hot station and cold station is fitted with an independent emergency stop button. Once material jamming, hand clamping risk or abnormal equipment operation occurs, press the corresponding emergency stop to retract all pressing cylinders instantly to avoid equipment damage and operator injury.
八. Daily & Periodic Maintenance FAQs
Q12: What regular maintenance items need to be carried out to guarantee long stable operation?
A12:
- Daily Maintenance: Wipe residual glue and dust on mold surfaces, check normal rotation of cooling fans, drain water from air three-point combination unit, listen for abnormal compressor noise;
- Weekly Maintenance: Fill high-temperature resistant lubricating grease for mold lifting guide rails and cylinders, check all air pipe joints for air leakage;
- Monthly Maintenance: Clean dust screen of refrigeration radiator, calibrate temperature sensor accuracy, inspect compressor operating current.
Q13: How to deal with thick frost accumulated on cold molds after long standby?
A13: Operate the built-in automatic defrost program on the touch screen control panel, no need to disassemble molds manually to melt frost, saving maintenance time.
九. Customization & After-sales Document FAQs
Q14: Can shoe lasts, Teflon binding fixtures and mold radians be customized according to customer shoe samples?
A14:Yes. We provide full ODM customization service. Our technical team designs exclusive adjustable molds and clamping fixtures according to customer physical shoe samples, adapting to special toe shapes and high-precision lasting processes.
Q15: What complete documents will be delivered with the machine for overseas sales and operation?
A15: Complete English version operation manual, spare parts list, 3D mold assembly drawings, electrical schematic, refrigeration circuit diagram and air circuit diagram, together with CE certification documents. All electronic PDF files can be sent to customers by email before shipment.
十. Warranty & Overseas Technical Support FAQs
Q16: What is the machine warranty policy?
A16:We provide 12-month full machine warranty (consumables such as heating tubes, sealing rings and bearing grease are excluded). Original imported NGM compressors are covered under the same warranty term. After the warranty expires, we supply all spare parts at factory cost price permanently.
Q17: Is overseas on-site installation and training available?
A17: Yes. We offer free 24-hour online remote video debugging and operator training all year round. If on-site technical guidance is required for overseas factories, we can arrange professional engineers to travel abroad (the customer shall bear the engineer’s round-trip airfare, accommodation and transportation expenses).
