I. Основная информация о продукте

Q1:  What is the ASFROM AFL-8832A Rubber Buffing Machine?

A1: The ASFROM AFL-8832A is a professional rubber buffing machine, mainly suitable for roughening the flat, concave, and convex surfaces of rubber outsoles, EVA outsoles, and foam outsoles, as well as bottom roughening. The machine features an imported high wear-resistant diamond wheel as the core abrasive tool, equipped with an automatic feeding system, adjustable automatic lifting function, and intelligent protection device. The operation is simple and intuitive, with high roughing efficiency and excellent results, making it an ideal choice for outsole roughening in the footwear industry.

Q2: What are the main technical parameters of the AFL-8832A Rubber Buffing Machine?

A2:The core parameters are as follows:

1. Model: AFL-8832A；

2. Voltage: 380V / 50HZ / 3Phases (standard three-phase configuration)；

3. Power: 4KW (main motor, high power ensures strong roughing force)；

4. Max Speed: 3000 rpm (high-speed rotation for efficient roughing)；

5. Dust Collector Power: 1.5KW (independent dust extraction system for simultaneous dust removal)；

6. Machine Size: 1320mm × 950mm × 1500mm；

7. Weight: 350KG (sturdy and stable construction).

Q3:  What are the standard electrical specifications of the ASFROM AFL-8832A? Is voltage customization available?

A3:The standard voltage is 380V / 50HZ / 3Phases with a main motor power of 4KW and a dust collector power of 1.5KW, totaling 5.5KW. For overseas customers with local voltages of 220V / 60Hz or other specifications, please consult the brand when placing an order to confirm whether motor and electrical system customization is supported. As the machine has a total power of 5.5KW, please ensure the factory power supply lines meet the load requirements for normal operation.

II. Применимые отрасли и материалы

Q4:Which production fields is the ASFROM AFL-8832A Rubber Buffing Machine suitable for?

A4:This machine is mainly suitable for the following production fields:

1. Footwear industry:

   • Flat surface roughening of rubber outsoles；

   • Concave and convex surface roughening of rubber outsoles；

   • EVA outsole roughening；

   • Foam outsole roughening；

   • Bottom roughening of outsoles；

2. Shoe material processing: Surface roughening of various outsoles to enhance bonding strength with the upper.

The AFL-8832A is particularly good at handling concave and convex surfaces, a function that ordinary roughening equipment cannot easily achieve.

Q5:  What types of materials can the AFL-8832A buffing machine process?

A5:The machine is suitable for various shoe materials, including but not limited to:

• Rubber outsoles: Various natural rubber and synthetic rubber outsoles；

• EVA outsoles: EVA foam soles；

• Foam outsoles: Various foam material soles；

• Surface types: Flat surfaces, concave and convex surfaces, and complex curved surfaces can all be processed.

The machine uses an imported high wear-resistant diamond wheel as the core abrasive tool, offering excellent wear resistance for long-term continuous roughing operations, especially suitable for processing high-hardness or high-wear-resistance rubber materials.

三. Special Knowledge of Machine Components

Q6: What is the core structure and working principle of the AFL-8832A Rubber Buffing Machine?

A6:The equipment adopts an automatic feeding + diamond wheel roughing design. The core structure and working principle are as follows:

1. High wear-resistant diamond wheel: An imported high wear-resistant diamond wheel serves as the core abrasive tool, rotating at high speed (up to 3000 rpm) to roughen the sole surface；

2. Automatic feeding system: The user only needs to place the material at the feed port, and the machine automatically feeds and performs roughing operations, making operation simple and intuitive；

3. Adjustable lifting system: Equipped with an advanced adjustable automatic rise/fall function, it can quickly adjust the roughing depth (thickness) to accommodate materials of different thicknesses and roughing requirements；

4. Intelligent protection device: An imported high-precision descent limit switch intelligently controls the descent stroke to prevent excessive downward pressure；

5. Dust extraction system: An independent 1.5KW dust collector simultaneously collects dust generated during the roughing process.

The machine adopts an automated operation mode, significantly reducing manual labor intensity and improving production efficiency.

Q7: What are the advantages of the high wear-resistant diamond wheel on the AFL-8832A buffing machine?

A7:The imported high wear-resistant diamond wheel is the core abrasive tool of the AFL-8832A, with advantages reflected in:

1. Ultra-long service life: Made of imported high wear-resistant diamond material, offering excellent wear resistance far exceeding ordinary grinding wheels, significantly reducing the frequency of abrasive tool replacement；

2. Reduced consumable costs: Lower replacement frequency means lower long-term overall cost；

3. Stable roughing results: The diamond wheel wears evenly, maintaining consistent roughing performance throughout its service life without quality fluctuations caused by tool wear；

4. Suitable for high-hardness materials: The hardness and wear resistance of the diamond wheel make it particularly suitable for processing difficult-to-roughen materials such as high-hardness rubber and EVA；

5. Reduced downtime: Lower abrasive tool replacement frequency reduces downtime caused by tool changes, improving equipment utilization.

Q8:How does the intelligent protection device of the AFL-8832A buffing machine work?

A8:The intelligent protection device equipped on the AFL-8832A is an imported high-precision descent limit switch system, which works and functions as follows:

1. Intelligent control of descent stroke: The limit switch precisely controls the descent depth of the roughing head (diamond wheel), ensuring consistent roughing depth；

2. Preventing excessive downward pressure: When the roughing head descends to the set position, the limit switch automatically triggers and stops further descent, effectively preventing excessive downward pressure；

3. Protecting the feeding rubber wheel: Excessive downward pressure would cause the feeding rubber wheel and other components to bear excessive stress and accelerate wear. The intelligent limit switch effectively prevents this, extending the service life of the feeding rubber wheel；

4. Maintaining processing accuracy: By precisely controlling the descent stroke, it ensures consistent roughing depth for each batch of materials, maintaining processing accuracy and stable product quality；

5. Ensuring stable operation of core components: Reduces unnecessary mechanical stress, ensuring long-term stable operation of the machine‘s core components.

四.Standard Operation Process

Q9: What is the standard operation process of the ASFROM AFL-8832A Rubber Buffing Machine?

A9:The operation process is as follows:

1. Pre-operation check: Confirm power connection is normal; check that the diamond wheel is securely installed and undamaged；check that the dust extraction system is working；

2. Adjust roughing depth: According to material thickness and roughing requirements, use the adjustable lifting system to adjust the roughing head descent depth；

3. Start the machine: Turn on the power switch; the diamond wheel rotates to normal operating speed, and the dust extraction system starts simultaneously；

4. Automatic feeding: Place the sole to be roughened at the feed port; the machine automatically feeds it into the roughing area for processing；

5. Intelligent roughing: The diamond wheel rotates at high speed to roughen the sole surface; the limit switch intelligently controls the descent stroke to prevent excessive downward pressure；

6. Simultaneous dust extraction: During roughing, the dust extraction system operates automatically to collect generated dust；

7. Quality inspection: Check whether the roughened surface is uniformly rough to ensure firm bonding with the upper；

8. Cleaning and shutdown: After operation, clean the dust extraction system and turn off the power.

Q10: How is the roughing depth (thickness) adjusted on the AFL-8832A buffing machine?

A10:The AFL-8832A is equipped with an advanced adjustable automatic rise/fall function. The adjustment method is as follows:

1. Adjustment method: Through the lifting adjustment device on the machine, the descent depth of the roughing head can be quickly adjusted；

2. Applicable range: Can be flexibly adjusted according to different material thicknesses (thin/thick) and roughing requirements (light/deep roughing)；

3. Simple operation: Adjustment is simple and intuitive, requiring no complex tools, and ordinary operators can complete it quickly；

4. Intelligent limit coordination: The adjusted descent stroke is precisely controlled by an imported high-precision limit switch, ensuring consistent roughing depth each time；

5. Significantly improved efficiency: The quick adjustment function greatly reduces changeover time, improving overall operation speed and efficiency.

五.Machine Structure & Components

Q11: What are the core components of the ASFROM AFL-8832A Rubber Buffing Machine?

A11:The machine mainly consists of the following core components:

1. Base and body: Sturdy load-bearing structure ensuring stable operation；

2. Spindle and motor system: 4KW high-power motor driving the spindle at up to 3000 rpm；

3. High wear-resistant diamond wheel: Imported core abrasive tool for outsole surface roughening；

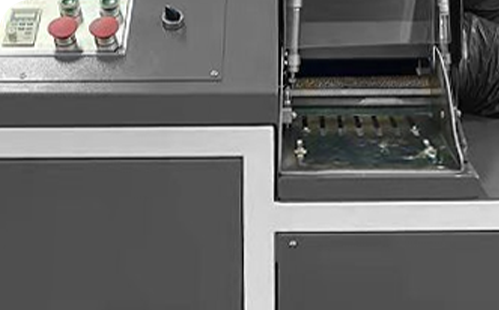

4. Automatic feeding system: Automatically feeds materials into the roughing area, reducing manual labor intensity；

5. Adjustable lifting system: Quickly adjusts roughing depth (thickness) to accommodate different materials；

6. Intelligent protection device: Imported high-precision descent limit switch to prevent excessive downward pressure；

7. Dust extraction system: 1.5KW independent dust collector for simultaneous dust collection during roughing；

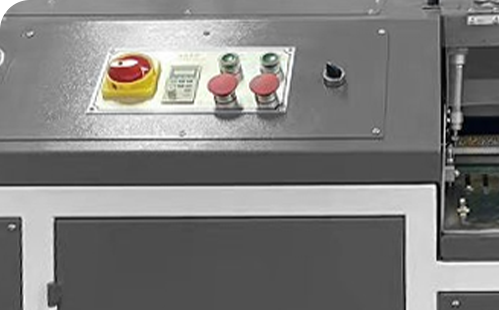

8. Electrical control system: Controls machine start, stop, and operational protection.

The machine features a well-designed structure with a high degree of automation, effectively reducing operator labor intensity.

Q12:  What are the advantages of the automatic feeding system of the AFL-8832A buffing machine?

A12:The automatic feeding system is one of the core functions of the AFL-8832A, with advantages reflected in:

1. Simple and intuitive operation: The user only needs to place the material at the feed port; the machine automatically completes feeding and roughing without complex operation training；

2. Reduced labor intensity: No need for operators to manually push materials, significantly reducing manual labor intensity and fatigue；

3. Uniform feeding speed: Automatic feeding provides stable and uniform speed, avoiding roughing inconsistencies caused by uneven manual feeding speed；

4. Improved production efficiency: Automatic feeding combined with high-speed roughing significantly increases output per unit time compared to manual feeding equipment；

5. Enhanced safety: Reduces operator contact with high-speed rotating parts, lowering the risk of workplace injuries；

6. Intelligent protection integration: Automatic feeding is linked with the intelligent limit switch to ensure safe and reliable roughing operations.

六.Core Functions & Features

Q13: What are the core advantages of the ASFROM AFL-8832A Rubber Buffing Machine compared to ordinary roughing equipment?

A13:Five core advantages:

1. High wear-resistant diamond wheel: Imported high wear-resistant diamond wheel with service life far exceeding ordinary grinding wheels, significantly reducing replacement frequency and consumable costs；

2. Automatic feeding: Simple and intuitive operation with automatic feeding reducing manual labor intensity and improving production efficiency；

3. Quick adjustment lifting: Adjustable automatic rise/fall function for quick roughing depth adjustment to accommodate different material thicknesses, saving changeover time；

4. Intelligent protection device: Imported high-precision descent limit switch intelligently controls descent stroke, preventing excessive downward pressure and protecting core components such as the feeding rubber wheel；

5. Adapts to complex surfaces: Particularly good at handling concave and convex surfaces — a function that ordinary roughing equipment cannot easily achieve.

Q14: What impact does the intelligent protection device of the AFL-8832A have on equipment service life?

A14:The impact of the intelligent protection device on equipment service life is reflected in the following aspects:

1. Preventing excessive downward pressure: The limit switch precisely controls the roughing head descent depth, avoiding excessive downward pressure caused by operational errors or material thickness variations；

2. Protecting the feeding rubber wheel: Excessive downward pressure subjects the feeding rubber wheel to excessive stress, accelerating wear or even causing damage. The intelligent limit effectively prevents this, extending the service life of the feeding rubber wheel；

3. Reducing mechanical stress: Precise control of the descent stroke reduces unnecessary mechanical stress on core components, extending the life of the spindle, guide rails, and other parts；

4. Maintaining processing accuracy: Precise control ensures consistent roughing depth, avoiding product quality issues caused by depth fluctuations；

5. Reducing maintenance costs: Reduces part replacement caused by excessive wear or damage, lowering long-term equipment maintenance costs.

七.Safety & Performance

Q15: What are the safety precautions when operating the AFL-8832A Rubber Buffing Machine?

A15:To ensure operator safety, please pay attention to the following:

1. Pre-operation check: Check that the diamond wheel is securely installed and undamaged；check that the feeding system is normal；check that the dust extraction system is working properly；

2. Hand safety: During operation, keep hands away from the feed port and roughing area. Never touch the roughing head while the machine is running；

3. Material placement: Place the material to be roughened correctly at the feed port, ensuring it is flat to avoid jamming；

4. Eye and respiratory protection: Operators are recommended to wear safety goggles and dust masks to prevent dust and debris from splashing into the eyes or being inhaled；

5. Intelligent limit check: Regularly check whether the descent limit switch is working properly to ensure the intelligent protection device is reliable；

6. Dust extraction system: Ensure the dust extraction system is working properly and clean the dust collection device regularly；

7. Maintenance shutdown: Always turn off the power and wait for the machine to come to a complete stop before cleaning, inspection, or diamond wheel replacement；

8. Power safety: Ensure the power cord is not damaged and the equipment is properly grounded to avoid electric shock risks.

Q16: What are the common issues after long-term operation of the AFL-8832A buffing machine? How should they be handled?

A16:Common issues and solutions are as follows:

1. Diamond wheel wear: Reduced roughing performance and uneven surface. Solution: Replace with a new imported high wear-resistant diamond wheel to maintain good tool condition；

2. Feeding rubber wheel wear: Unsmooth feeding, roughing position deviation. Solution: Check whether the feeding rubber wheel is worn; replace if necessary；

3. Inconsistent roughing depth: Limit switch precision degradation or lifting mechanism looseness. Solution: Check whether the limit switch is working properly；check the lifting mechanism for tightening；

4. Reduced dust extraction: Incomplete dust collection. Solution: Clean the dust extraction system；check whether the collection duct is blocked；

5. Abnormal noise or vibration: Unusual noise or increased vibration during operation. Solution: Check whether the diamond wheel is balanced；check whether spindle bearings are worn；contact professional personnel for inspection if necessary.

It is recommended that customers inspect the machine condition daily before starting work, regularly maintain the intelligent limit switch and dust extraction system, and address any abnormalities promptly to extend equipment service life.

八. Model Selection Consultation

Q17:  What key conditions should be confirmed when purchasing the ASFROM AFL-8832A Rubber Buffing Machine?

A17:Purchasing requires confirmation of 4 core dimensions:

1. Power supply conditions: Confirm the factory site voltage (standard 380V/50Hz three-phase) and frequency. The machine has a total power of 5.5KW (main motor 4KW + dust collector 1.5KW), so ensure the factory power supply lines meet the load requirements；

2. Processing materials and process requirements: Confirm the main material types (rubber/EVA/foam) and surface types (flat/concave-convex). The AFL-8832A is particularly suitable for roughing complex surfaces such as concave and convex surfaces；

3. Roughing depth requirements: Confirm the required roughing depth range. The machine is equipped with an adjustable lifting system for quick roughing depth (thickness) adjustment；

4. Daily output requirements: The AFL-8832A is an automatic feeding machine. Assess whether it matches daily output targets. Compared to manual feeding machines, automatic feeding can significantly improve output per unit time.

Q18: Can the high wear-resistant diamond wheel of the AFL-8832A be replaced by the user after the machine is delivered?

A18:Yes. The diamond wheel is a consumable item that users can replace themselves. Details are as follows:

1. Replacement steps:

   • Turn off the power and wait for the machine to come to a complete stop；

   • Remove the fixing device of the old diamond wheel and take it off；

   • Clean the mounting shaft and mounting surface；

   • Install the new diamond wheel, ensuring proper positioning；

   • Tighten the fixing device and manually rotate to check whether the installation is secure and rotation is smooth；

   • Start the machine for a trial run to confirm normal roughing performance；

2. Procurement channel: It is recommended to purchase genuine imported high wear-resistant diamond wheel parts from the original factory to ensure material and size compatibility；

3. Replacement cycle: The service life of the diamond wheel depends on factors such as material hardness and daily output. Regularly check for wear and replace promptly；

4. Professional advice: For first-time replacement or if unfamiliar with the operation, consult the brand‘s technical support for guidance.
