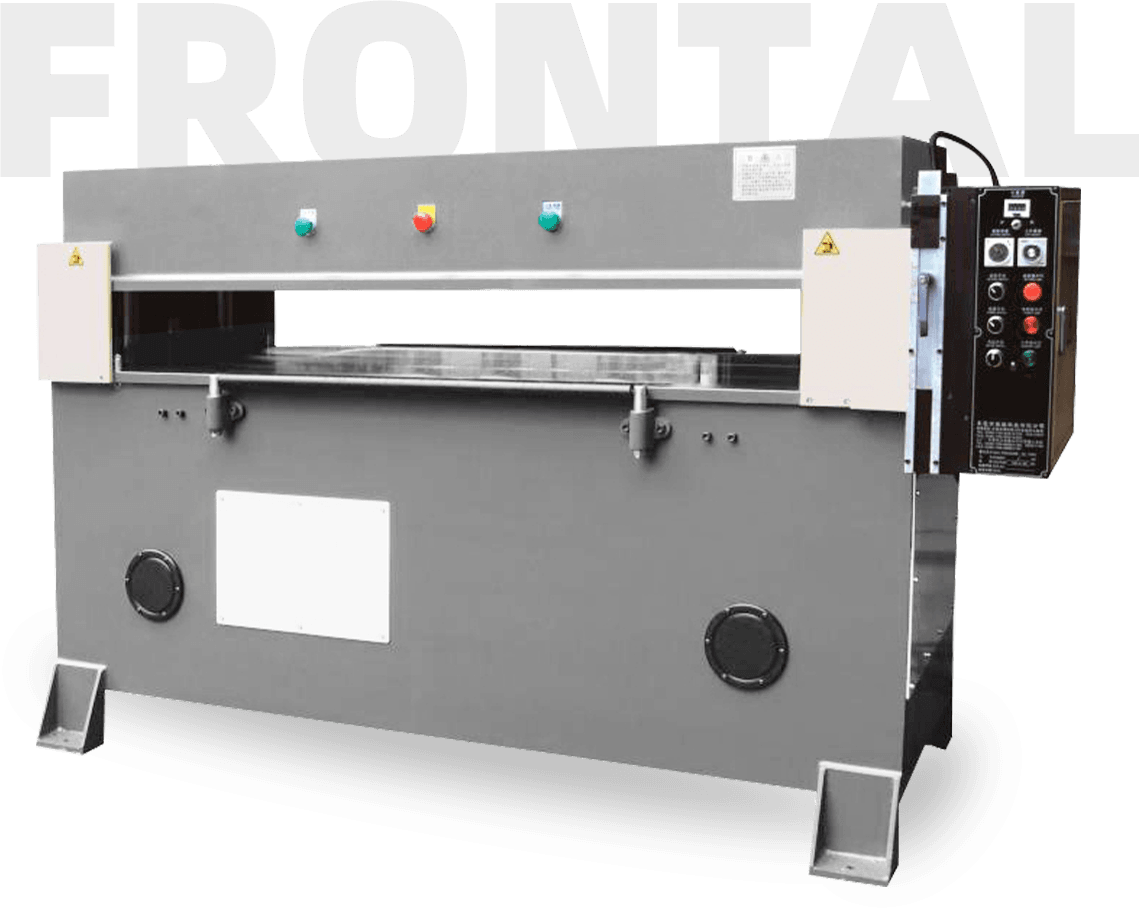

Hydraulic 4-Column Cutting Machine AFC-740

High-precision cutting: The use of precise hydraulic system and advanced control technology can achieve high-precision cutting action. When the cutting plate contacts the die, it automatically cuts slowly, so that there is no dimensional error between the top and bottom layers of the cut material.

AFC-740

Hydraulic 4-Column Cutting Machine ---

New product under development.....

Hydraulic 4-Column Cutting Machine

Shoe forming machine

Unique setting structure: the double cylinder structure and the precise double crank connecting rod automatic balancing structure make the equipment more evenly stressed during operation, with strong and stable cutting force, which can effectively reduce the shaking and deformation of the equipment and improve the cutting quality.

AFC-740

Stable and reliable: The four-column structure design makes the equipment more stable and rigid. It can maintain stable performance under long-term and high-intensity working conditions, reduce cutting errors caused by equipment shaking or deformation, and extend the service life of the equipment. At the same time, the central automatic lubrication system ensures the precision of the machine and improves the durability of the machine.

AFC-740

Characteristics Comparison

Some advantages of our machines compared with other manufacturers

Characteristics
Comparison

First point

We:Automatic rubber blocks adapt to various
outsole shapes

They：Manual adjustment for each shoe shape;
time-consuming

Second point

We:No mold required; floating rubber
adjusts curvature

They:No mold required; floating rubber
adjusts curvature

Third point

We:Cylinder-controlled pressure, evenly
adjusted automatically

They:Requires manual tuning, inconsistent
pressure

STILL STRUGGLING WITH TADITIONAL ALSTING MACHINERS?

1.Low precision — Hard to handle curves and fine details?
2.Dusty workspace — No dust collection, poor hygiene?
3.High noise — Open design, loud and disruptive？
4.Hard to operate — Needs skilled workers, not beginner-friendly？
5Fixed position — Difficult to move or adjust?
6.Low efficiency — Manual work, slow output?

It's time to upgrade.
Discover the power of smart lasting automation—stable, efficient, and easy to use.

Parameters

Hydraulic 4-Column Cutting Machine----AFC-740

Parameters

610*1600mm

Detailed drawing

Workspace:

2300*1050*1370mm

Machine Size:

Packing Size:

2300*1100*1500mm

1900kg

N.W:

G.W:

2000kg

Model：

AFC-740

Detailed drawing

It is used in industrial production to cut various flexible synthetic materials.
It is suitable for cutting fabrics and linings of bags, as well as soles, uppers,
leather, handbags, golf bags and other materials.

Max Cutting Force:

40T

Stroke:

50-150mm

Motor Power:

3HP/ 2.2KW

Oil:

80kg
