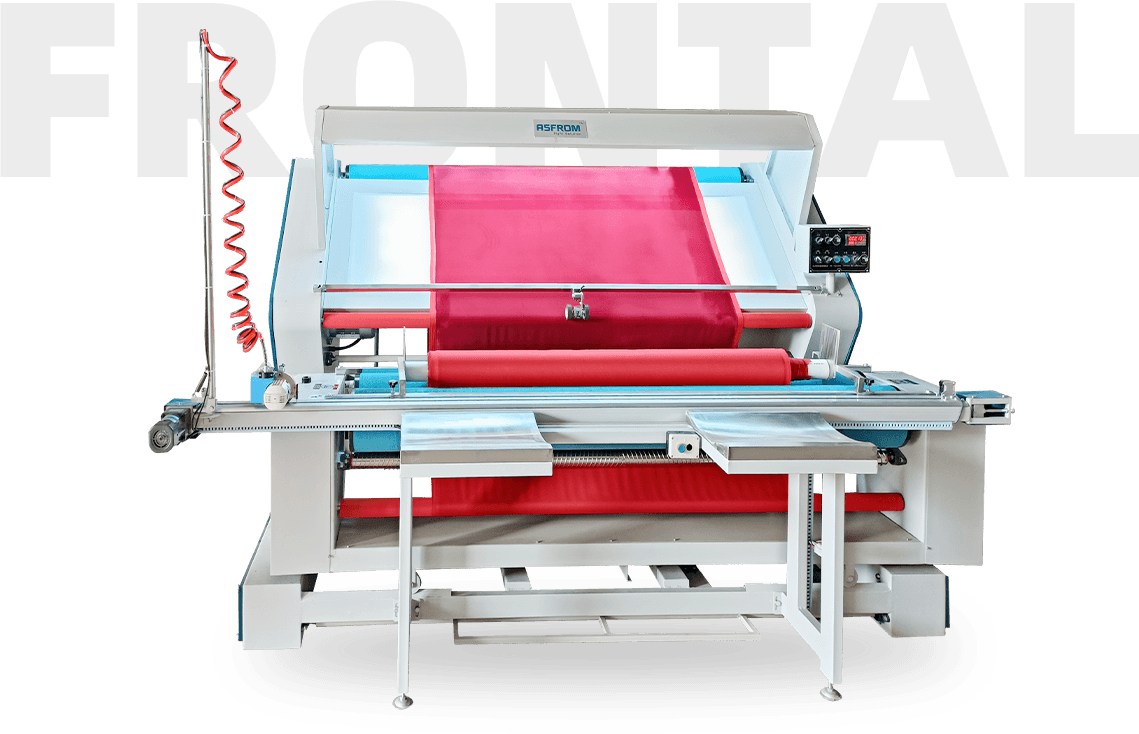

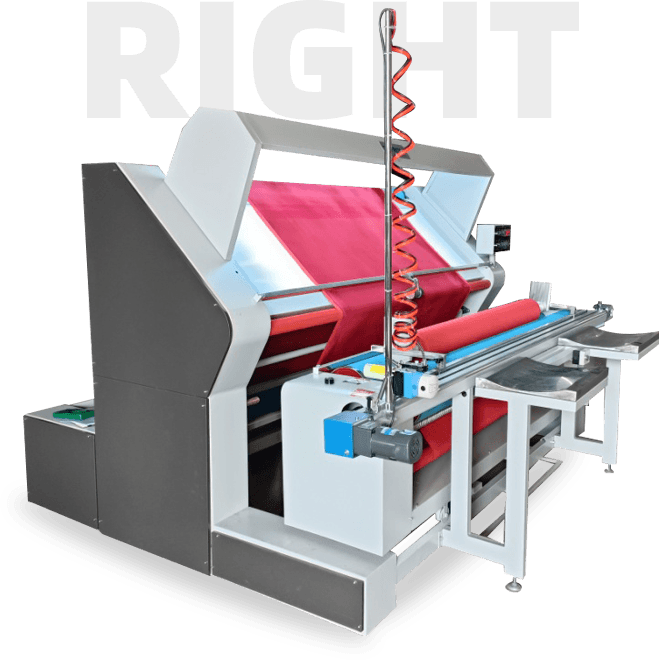

Fabric Inspection Machine AM-635

Fabric Inspection Machine ---

AM-635

Equipped with a set of upper fabric tension racks to control the tension of the fabric during the transmission process. Reasonable tension control is crucial to ensure the flatness and inspection effect of the fabric. The upper fabric tension rack can flexibly adjust the tension according to the characteristics of the fabric and processing requirements, so that the fabric can maintain a good state in the subsequent processing process.

New product under development.....

Fabric Inspection Machine

Shoe forming machine

There are 5 cloth-winding and cloth-feeding shafts in total. Among them, there is 1 shaft with a shaft diameter of 140mm and 4 shafts with a shaft diameter of 219mm, and all 4 shafts with a diameter of 219mm are wrapped with tape. The shaft length is 2300mm and the effective width reaches 2100mm. The larger effective width can meet the processing requirements of wide fabrics, improve production efficiency, and reduce the inconvenience of operation caused by fabric width restrictions.

AM-635

Characteristics Comparison

Some advantages of our machines compared with other manufacturers

Characteristics
Comparison

First point

We:Automatic rubber blocks adapt to various
outsole shapes

They：Manual adjustment for each shoe shape;
time-consuming

Second point

We:No mold required; floating rubber
adjusts curvature

They:No mold required; floating rubber
adjusts curvature

Third point

We:Cylinder-controlled pressure, evenly
adjusted automatically

They:Requires manual tuning, inconsistent
pressure

STILL STRUGGLING WITH TADITIONAL ALSTING MACHINERS?

1.Low precision — Hard to handle curves and fine details?
2.Dusty workspace — No dust collection, poor hygiene?
3.High noise — Open design, loud and disruptive？
4.Hard to operate — Needs skilled workers, not beginner-friendly？
5Fixed position — Difficult to move or adjust?
6.Low efficiency — Manual work, slow output?

It's time to upgrade.
Discover the power of smart lasting automation—stable, efficient, and easy to use.

Parameters

Fabric Inspection Machine----AM-635

Parameters

G.W:

Detailed drawing

900KG

1000KG

AM-635

Machine Size：

2250*3060*2250mm

Model：

380V/50HZ/3Phases

Detailed drawing

This machine is very important in the textile industry. It is used for fabric coding, inspection and winding. It is suitable for knitted fabrics, woven fabrics, non-woven fabrics and other types of fabrics.

1.74KW

Voltage:

Power:

N.W：
