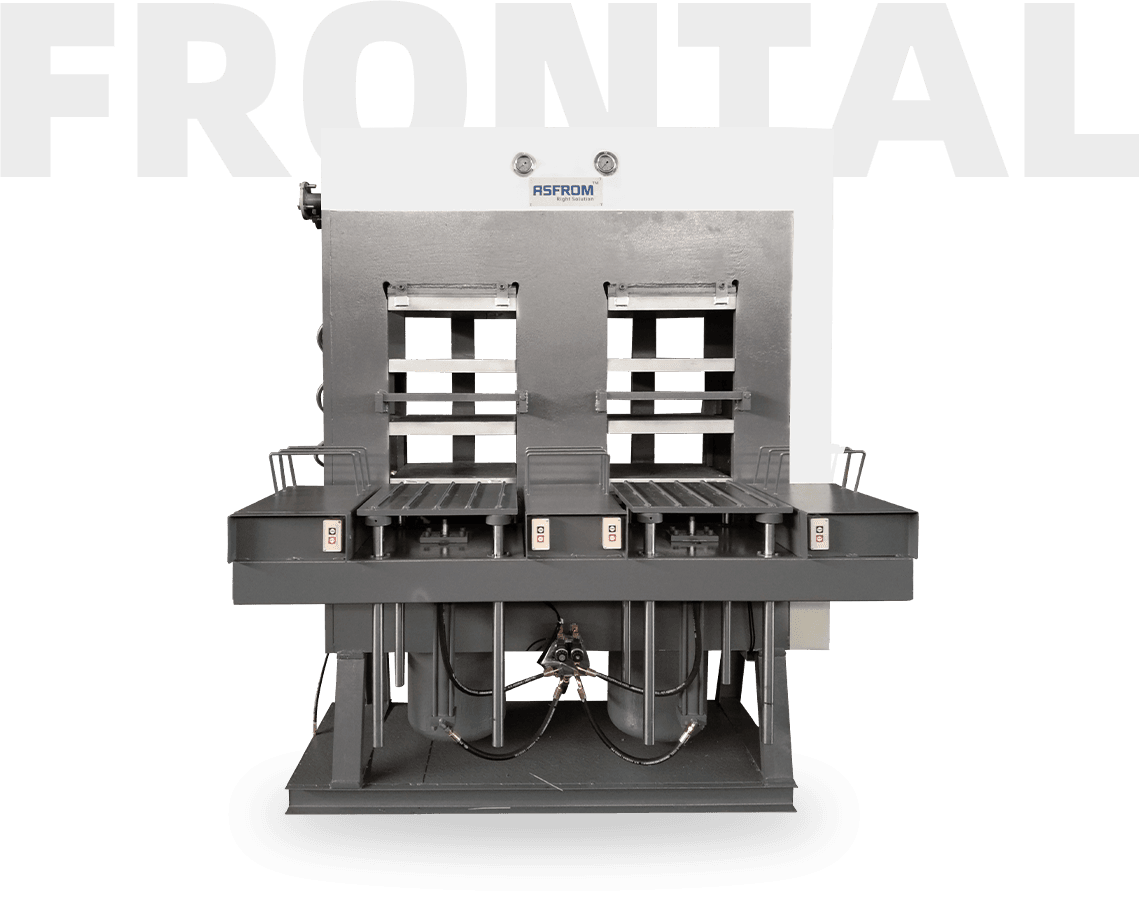

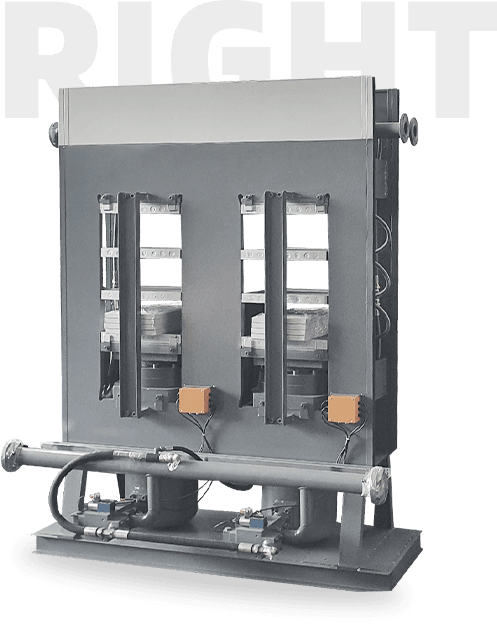

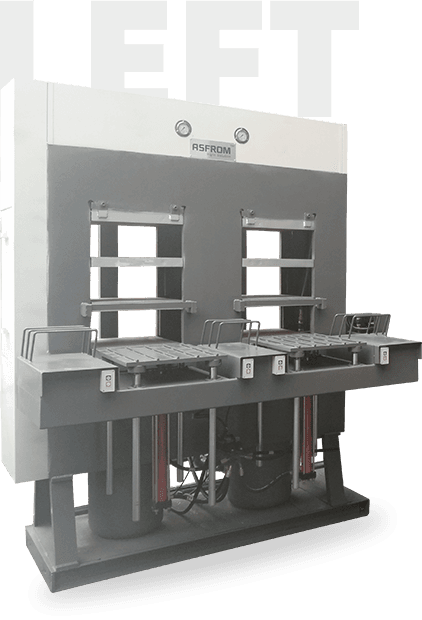

Rubber Hydraulic Press Machine RB-A12

Program time arrived, the automatic transmission signals to the valve so that it moves down, it will unload the oil pressure and flow to the tank, down to the machine function.

RB-A12

Equipped with advanced electric control box touch panel, the interface is intuitive and easy to use, which can monitor the production screen and flexibly set all process parameters (such as pressure, time, temperature, etc.). The operation is simple and efficient, the system failure rate is extremely low, and the stable operation of the equipment is guaranteed.

New product under development.....

Rubber Hydraulic Press Machine

Shoe forming machine

Using high-volume low-pressure mold to increase after the low pressure automatic unloading to pressure from the high-pressure pump until the pressure setting, the motor automatically stop and send a signal controlled by the electronic control the flow of process time.

RB-A12

Automatically taken out of mold hydraulic motor drive system arrangements gear, through the control system allowed for forward and back function, when the backward movement command will die when it is scheduled to orbit arc shaft pulled up to die open 90 degrees, easy access and loading materials, mold and mold action is action contrary.

RB-A12

Rubber Hydraulic Press Machine ---

Characteristics Comparison

Some advantages of our machines compared with other manufacturers

Characteristics
Comparison

First point

We:Automatic rubber blocks adapt to various
outsole shapes

They：Manual adjustment for each shoe shape;
time-consuming

Second point

We:No mold required; floating rubber
adjusts curvature

They:No mold required; floating rubber
adjusts curvature

Third point

We:Cylinder-controlled pressure, evenly
adjusted automatically

They:Requires manual tuning, inconsistent
pressure

STILL STRUGGLING WITH TADITIONAL ALSTING MACHINERS?

1.Low precision — Hard to handle curves and fine details?
2.Dusty workspace — No dust collection, poor hygiene?
3.High noise — Open design, loud and disruptive？
4.Hard to operate — Needs skilled workers, not beginner-friendly？
5Fixed position — Difficult to move or adjust?
6.Low efficiency — Manual work, slow output?

It's time to upgrade.
Discover the power of smart lasting automation—stable, efficient, and easy to use.

Parameters

Rubber Hydraulic Press Machine----RB-A12

Parameters

Hydraulic output / Cotton：

Detailed drawing

Piston diameter:

Piston diameter

Machine type：

Piston stroke：

RB-A12

800mm

540mm/3 seconds

540mm/5 seconds

400V/ 50HZ /3Phases

150kg

Model：

200kg

Detailed drawing

The hydraulic press is a process that heats and pressurizes
rubber materials to form them into soles of various shapes
and sizes in a mold, such as flat soles, high-heeled soles,
sports shoe soles, etc.

180mm

3 Layers

460 * 460 * 50mm

Hot-plate area:

Layers:

Distance between layers:

Maximum working pressure：

Commonly used pressure：

15kw

Frame structure

150 TONS

Clamping speed:

Power supply:

Mold speed：

Power drain:
