Shoe Last Inserting and Steamingand Tightening Machine ACH-3882025-11-12T01:19:58+00:00

Slide The steam part adopts the latest nanotube heating. It is highly efficient, energy-saving, safe, and only takes 15 seconds to start up. It produces steam quickly, continuously, without dripping, scaling, or pressure. It has its own constant temperature module, which is convenient for adjusting the temperature. The steam quickly softens the upper to prepare for the subsequent last fitting and tightening. ACH-388 Shoe Last Inserting and Steaming
and Tightening Machine ---
New product under development..... Shoe Last Inserting and Steaming
and Tightening Machine
Shoe forming machine Tightening function: After the shoe last is inserted, the tightening part adopts automatic and manual functions. If the upper and the last are not in close contact after the shoe last is inserted, the functions of tightening the upper back cover and the top can be used to perfect the last and the upper to tighten and fit in one go without the need for the last machine to operate. The automatic last insertion function adopts automatic and foot-operated operation to replace the manual last insertion operation mode. The pneumatic last insertion reduces the difficulty of employees' operation and accurately puts the steamed upper into the last for easy molding and shaping. The last insertion efficiency is high and the operation is convenient and simple. Both novices and experienced workers can use it. ACH-388 ACH-388

Slide Characteristics Comparison Some advantages of our machines compared with other manufacturers Characteristics
Comparison
First point We:3-in-1 design: automatic last inserting +
steaming + tightening in one machine
They:Requires 3 separate machines: last inserting
machine + steaming machine + heel lasting machine
Second point We:Automatic & foot-operated pneumatic last
insertion, easy to use, suitable for both novices
and skilled workers
They:Manual last insertion, high labor intensity,
requires skilled workers
Third point We:Steam generator with unstable humidity,
uneven softening
They:Steam generator with unstable humidity,
uneven softening
STILL STRUGGLING WITH TADITIONAL ALSTING MACHINERS? 1.Needs separate heel lasting machine to tighten back cover and top?
2.Multiple machines, slow process, more floor space required?
3.Multiple machines consume more electricity and space?
4.More machines + more workers = higher cost?
It's time to upgrade.
Discover the power of smart lasting automation—stable, efficient, and easy to use.
Contact us

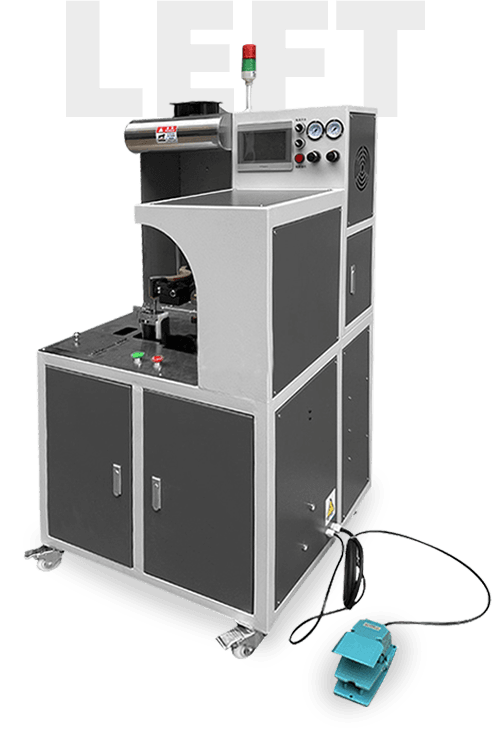

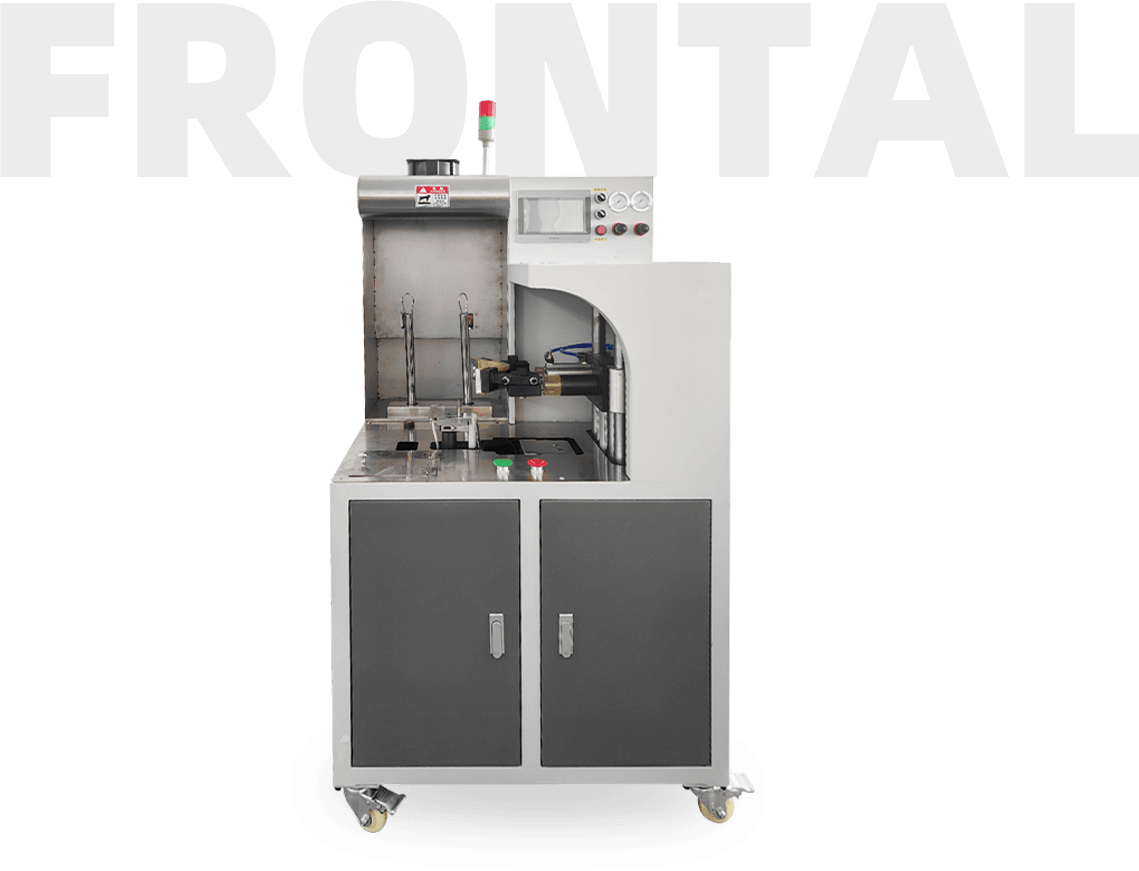

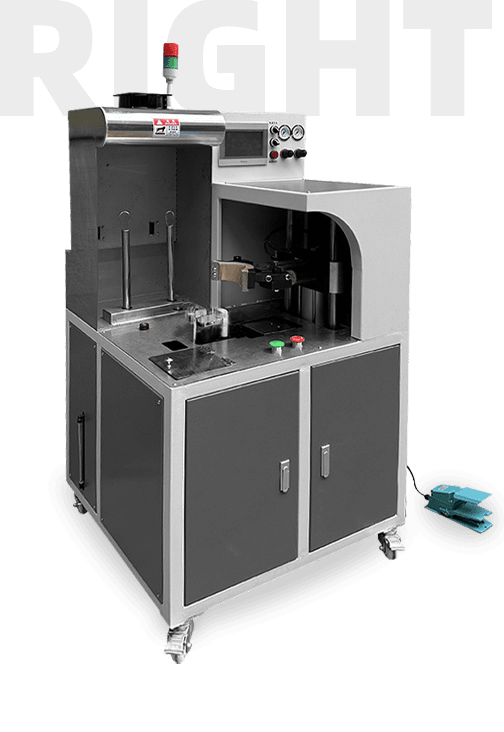

Slide Parameters Shoe Last Inserting and Steaming and Tightening Machine----ACH-388 Parameters Air Pressure: Detailed drawing N.W: 150KG 0.5mpa Model: ACH-388 Detailed drawing It is used to automatically complete the processes of steaming,
fitting and tightening the shoe uppers. It is suitable for various types
of shoes, such as men's and women's sports shoes, casual shoes,
vulcanized shoes, children's shoes, etc.
Voltage: 380V /50HZ/ 3Phases Power: 4KW Capacity: 1000Pairs/8hr Packing Size: 880*660*1430mm
