Bucket conveyor CK-802025-11-29T01:24:00+00:00

Slide sWC-7 Bucket conveyor --- New product under development..... Bucket conveyor EVA processing 1. The machine is suitable for placement between the pressurized mixer and open rubber mixing machine, to provide automatic feeding function.
2. Eliminating the trouble of manual feeding, labor-saving, improve work efficiency.
3.Easy maintenance, simple operation.
CK-80 CK-80

Slide 1.Pressurized Kneader 2.Bucket Conveyor 3.Open Mixing Mill 4.Extrusion Granulation machine 5.Cyclone separator 6.Vibrating Conveyor 7.Horizontal Mixing machine Granulation Production Line Rubber Outsole Production Line 1.Pressurized Kneader 2.Bucket Conveyor 3.Open Rubber Mixing Mill 5.GF Dry Powder Tank 7.Rubber Outsole Automatic Hydraulic Press Machine 6.Automatic Cutting Machine 4.Open Rubber Mixing Mill 1.Pressurized Kneader 2.Bucket Conveyor 3.Open Mixing Mill 6.Cold Water Type Seven Wheels Cutting Machine 7.EVA Hydraulic Press Machine EVA Foaming Production Line 4..Open Mixing Mill 5.Open Mixing Mill

Slide Characteristics Comparison Some advantages of our machines compared with other manufacturers Characteristics
Comparison
Cost & Efficiency Optimization: Replaces manual feeding to significantly reduce labor costs, eliminate operational hassle, and boost overall production efficiency. Stable, Durable & Low-Maintenance: Features a high-strength section steel frame for stable operation and precise feeding, paired with a corrosion/wear-resistant stainless steel hopper for extended service life and easy upkeep. 01 Automated Inter-process Connection: Seamlessly integrates between kneader mixers and open mixing mill, enabling automatic material conveying to streamline production workflows. STILL STRUGGLING WITH TADITIONAL ALSTING MACHINERS? 1.Manual pressing with slower operation and inconsistent pressure holding?
2.Limited adjustment options; difficult to handle products of varying thickness?
3.Uneven platen heating causing defects in foam sheets or rubber products?
4.Semi-manual process requiring high labor input?
It's time to upgrade.
Discover the power of smart lasting automation—stable, efficient, and easy to use.
Contact us 02 03

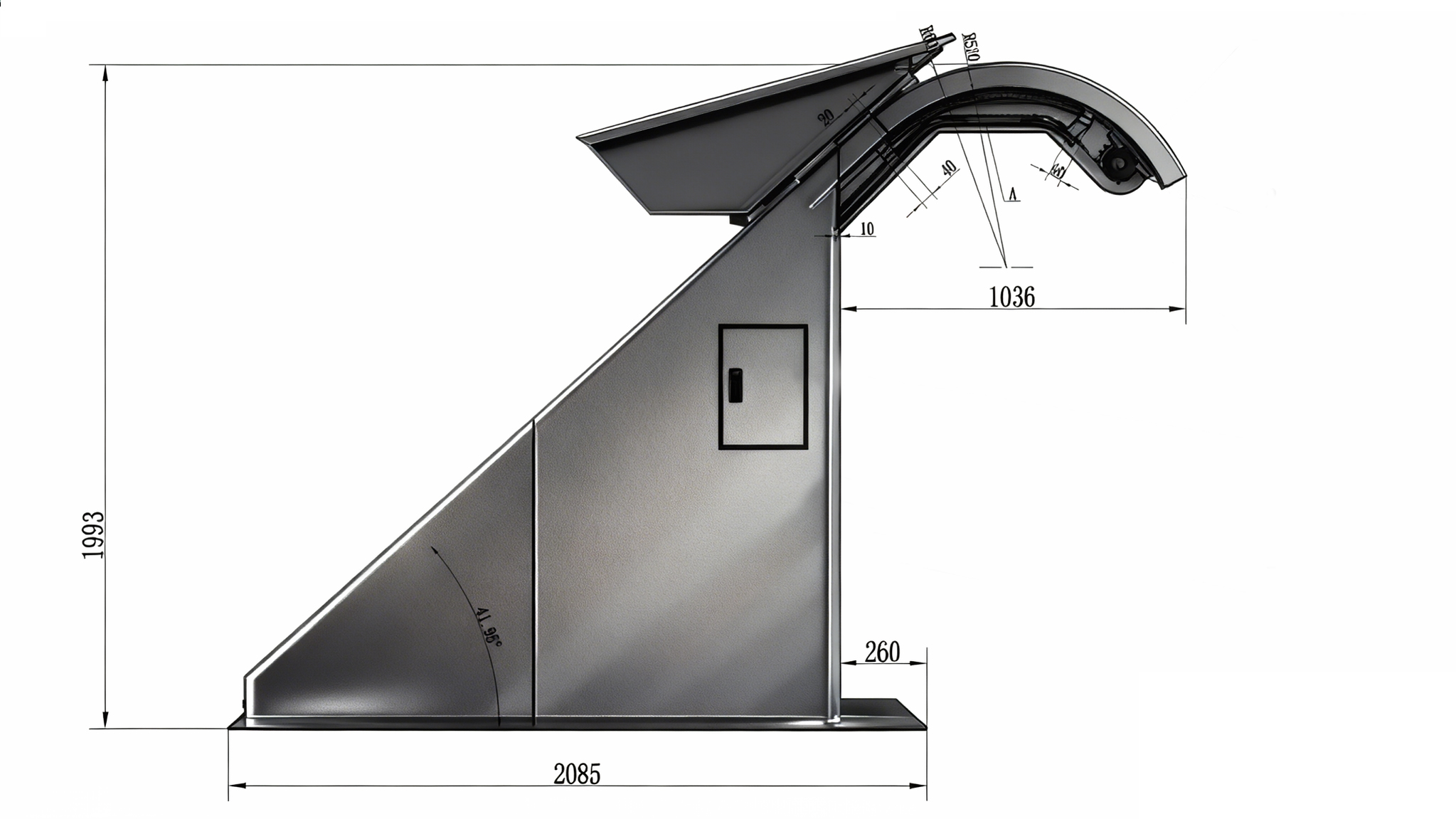

Slide Parameters Bucket conveyor---CK-80 Parameters For more models please contact me Detailed drawing Contact us Suspension type,manual operation Drive chain device 1.5kw main motor with reducer About 150kg Model: CK-80 Detailed drawing Used for conveying raw materials such as PE, EVA, and foam, this equipment
transports rubber compounds from lower to higher elevations, ensuring
continuous and efficient production processes.
Electric control box: Conveying machinery: Drive machinery : Storage tank capacity: Speed: 13.5M/MIN Load: 150KG Mechanical weight: 800KG Mechanical dimension: 3400*900*1470MM Frame: Use steel welded composition Storage tank: Made of stainless steel plates
